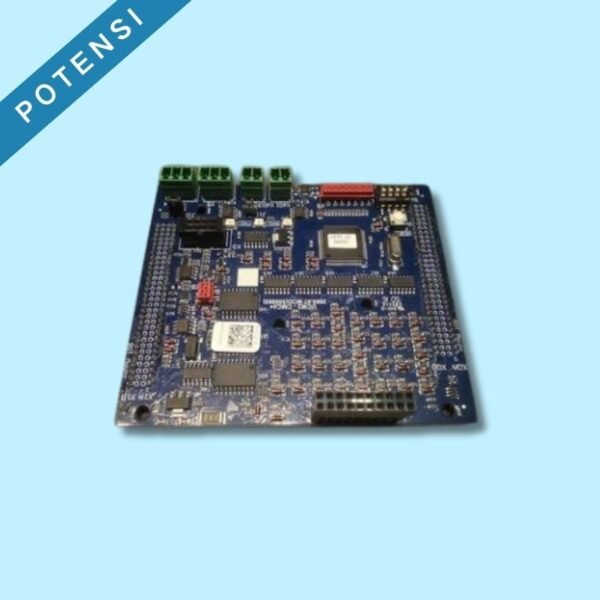

The UCM2 is the main CPU board of the TKE CMC4+ controller, number 2665.67 MOD. All the parameters, the shaft setup and the fault memory sit on this board, and the shaft and group CAN buses run through it. A new board arrives without your settings, so the shaft must be taught and the parameters loaded. This TKE elevator control board is quoted as 10079798 and KM51298897. Please confirm the MOD code on the label before ordering.
Whether you are a wholesaler or even maintenance company, you will find POTENSI is the ONE-STOP-SHOP for all the parts you need.
At POTENSI, our focus is to help you access to all kind of clients or all brand elevator easily with our 21 years experience in China elevator industry.
POTENSI mission is to help you to succeed and enhance building safety worldwide with top-quality elevator parts and outstanding service.
Delivery speed is our strength, but what make us different from everyone else is our multi-brand offering. Purchasing from POTENSI is as easy as it gets with 200K+ multi-brand parts.
Our web shop is open 24hours, 7days a week. Once you registered as our member, you will get many great benefits and you are able to find the part you need with any code and get our VIP service by sales specialist.
To ensure high quality, POTENSI provide parts only by original equipment manufacturers or their direct suppliers. You cooperate with POTENSI , you get the insurance of succeed when you are facing your customers.
Other CMC4+ control cabinet boards:
Boards mounted with it:
Potensi supplies the TKE elevator control board UCM2 2665.67 MOD, the TKE CMC4+ main CPU board and other TKE elevator PCB boards. The models above are only a part of what we can supply. We stock and source a much wider range of related and alternative models. If your model number is not listed here, please send us the model number or a photo of the original part, and we will confirm availability and the correct match for you.
Q1: What does the UCM2 board do in a CMC4+ lift?
A: It is the main CPU board of the controller, and its official name is the manoeuvre control unit. All the parameters, the shaft setup and the fault codes are stored on the UCM2 board itself. It also carries the shaft CAN bus and the group CAN bus, so a failure here isolates the car completely.
Q2: I fitted a new UCM2 and the lift will not run. Why?
A: The new board arrives without the site data, because the parameters, the shaft setup and the fault memory were held on the old board. The parameters have to be loaded and the shaft has to be taught again before the lift will run normally. That is also why the old board should be kept, not scrapped, until the new one is running.
Q3: What does the MOD code after 2665.67 mean?
A: 2665.67 is the board design number, and the MOD code identifies the programmed configuration of that board. The same board is quoted in the market with MOD codes such as 555565 and 555575, so the number is not interchangeable at random. Please read the MOD code from the label and send a photo, and we will match it rather than ship the nearest number.
Q4: Does the firmware version matter when replacing the board?
A: Yes, and this is where most surprises come from. TKE states that UCM2 firmware v01.04.31 and UCV firmware 02.00 depend on each other, so an older board will not work with a newer UCV and the reverse is also true. The same applies to the landing boards: UCM2 up to v01.06.15 is not compatible with UCP firmware from v01.15, while UCM2 from v01.08.27 is.
Q5: Which numbers are read to check the version on site?
A: The controller stores the versions in fixed addresses that can be read with the service tool. A908 is the firmware version, A909 the revision, A90A the communication version and A90B the hardware version. The hardware version matters too: TKE marks the first pre-series boards differently from the compatible production boards.
Q6: What do the jumpers and switches on the board do?
A: J1 is the shaft CAN bus termination and must be removed in a single elevator; J2 is the group CAN termination and must be bridged in a single elevator. The LEDs RXC1, TXC1, RXC2 and TXC2 show the shaft and group CAN traffic and should be blinking. The RESET switch clears a blocking fault and repeats the roll call, which is the step to take after changing a landing board.
